Examples

In this section we show examples of applications and use cases of the package.

Nile river annual flow

Here we will follow an example from Durbin & Koopman's book. We will use the LocalLevel model applied to the annual flow of the Nile river at the city of Aswan between 1871 and 1970.

First, we load the data:

using CSV, DataFrames
nile = CSV.File(StateSpaceModels.NILE) |> DataFrame
plt = plot(nile.year, nile.flow, label = "Nile river annual flow")

Next, we fit a LocalLevel model:

model = LocalLevel(nile.flow)
fit!(model)

LocalLevel

We can analyze the filtered estimates for the level of the annual flow:

filter_output = kalman_filter(model)
plot!(plt, nile.year, get_filtered_state(filter_output), label = "Filtered level")

We can do the same for the smoothed estimates for the level of the annual flow:

smoother_output = kalman_smoother(model)
plot!(plt, nile.year, get_smoothed_state(smoother_output), label = "Smoothed level")

StateSpaceModels.jl can also be used to obtain forecasts. Here we forecast 10 steps ahead:

steps_ahead = 10
dates = collect(nile.year[end] + Year(1):Year(1):nile.year[end] + Year(10))
forec = forecast(model, 10)
expected_value = forecast_expected_value(forec)
plot!(plt, dates, expected_value, label = "Forecast")

We can also simulate multiple scenarios for the forecasting horizon based on the estimated predictive distributions.

scenarios = simulate_scenarios(model, 10, 100)
plot!(plt, dates, scenarios[:, 1, :], label = "", color = "grey", width = 0.2)

The package also handles missing values automatically. To that end, the package considers that any NaN entries in the observations are missing values.

nile.flow[[collect(21:40); collect(61:80)]] .= NaN
plt = plot(nile.year, nile.flow, label = "Annual nile river flow")

Even though the series has several missing values, the same analysis is possible:

model = LocalLevel(nile.flow)
fit!(model)

LocalLevel

And the exact same code can be used for filtering and smoothing:

filter_output = kalman_filter(model)
smoother_output = kalman_smoother(model)
plot!(plt, nile.year, get_filtered_state(filter_output), label = "Filtered level")
plot!(plt, nile.year, get_smoothed_state(smoother_output), label = "Smoothed level")

We often write the model SARIMA model as an ARIMA $(p,d,q) \times (P,D,Q,s)$, where the lowercase letters indicate the specification for the non-seasonal component, and the uppercase letters indicate the specification for the seasonal component; $s$ is the periodicity of the seasons (e.g. it is often 4 for quarterly data or 12 for monthly data). The data process can be written generically as

\[\begin{equation} \phi_p (L) \tilde \phi_P (L^s) \Delta^d \Delta_s^D y_t = A(t) + \theta_q (L) \tilde \theta_Q (L^s) \epsilon_t \end{equation}\]

where

$\phi_p (L)$ is the non-seasonal autoregressive lag polynomial,
$\tilde \phi_P (L^s)$ is the seasonal autoregressive lag polynomial,
$\Delta^d \Delta_s^D y_t$ is the time series, differenced $d$ times, and seasonally differenced $D$ times.,
$A(t)$ is the trend polynomial (including the intercept),
$\theta_q (L)$ is the non-seasonal moving average lag polynomial,
$\tilde \theta_Q (L^s)$ is the seasonal moving average lag polynomial

sometimes we rewrite this as:

\[\begin{equation} \phi_p (L) \tilde \phi_P (L^s) y_t^* = A(t) + \theta_q (L) \tilde \theta_Q (L^s) \epsilon_t \end{equation}\]

where $y_t^* = \Delta^d \Delta_s^D y_t$. This emphasizes that just as in the simple case, after we take differences (here both non-seasonal and seasonal) to make the data stationary, the resulting model is just an ARMA model.

As an example, consider the airline model ARIMA $(0,1,1) \times (0,1,1,12)$. The data process can be written in the form above as:,

\[\begin{equation} \Delta \Delta_{12} y_t = (1 - \theta_1 L) (1 - \tilde \theta_1 L^{12}) \epsilon_t \end{equation}\]

Here, we have:

$\phi_p (L) = 1$, (i.e. there is no auto regressive effect)
$\tilde \phi_P (L^s) = 1$, (i.e. there is no seasonal auto regressive effect)
$d = 1, D = 1, s=12$ indicating that $y_t^*$ is derived from $y_t$ by taking first-differences and then taking 12-th differences.,
$A(t) = 0$ no trend,
$\theta_q (L) = (1 - \theta_1 L)$,
$\tilde \theta_Q (L^s) = (1 - \tilde \theta_1 L^{12})$,

It may still be confusing to see the two lag polynomials in front of the error variable, but notice that we can multiply the lag polynomials together to get the following model:

\[\begin{equation} y_t^* = (1 - \theta_1 L - \tilde \theta_1 L^{12} + \theta_1 \tilde \theta_1 L^{13}) \epsilon_t \end{equation}\]

For the airline model ARIMA $(0,1,1) \times (0,1,1,12)$ with an intercept, the command is:

using CSV, DataFrames
air_passengers = CSV.File(StateSpaceModels.AIR_PASSENGERS) |> DataFrame
log_air_passengers = log.(air_passengers.passengers)
model = SARIMA(log_air_passengers; order = (0, 1, 1), seasonal_order = (0, 1, 1, 12))
fit!(model)
print_results(model)

                             Results
===============================================================
Model:                        SARIMA(0, 1, 1)x(0, 1, 1, 12) with zero mean
Number of observations:       144
Number of unknown parameters: 3
Log-likelihood:               244.6965
AIC:                          -483.3930
AICc:                         -483.2215
BIC:                          -474.4835
---------------------------------------------------------------
Parameter      Estimate      Std.Error      z stat      p-value
ma_L1           -0.4018         0.1233     -3.2577       0.0000
s_ma_L12        -0.5570         0.1192     -4.6735       0.0000
sigma2_η         0.0013         0.0024      0.5545       0.0000

To make a forecast of 24 steps ahead of the model the command is:

forec = forecast(model, 24)
plot(model, forec; legend = :topleft)

The text from this example is based on Python`s statsmodels library. The estimates for this example match up to the 3th decimal place the results of the paper State Space Methods in Ox/SsfPack from the journal of statistical software.

Finland road traffic fatalities

In this example, we will follow what is illustrated on Commandeur, Jacques J.F. & Koopman, Siem Jan, 2007. "An Introduction to State Space Time Series Analysis," OUP Catalogue, Oxford University Press (Chapter 3). We will study the LocalLinearTrend model with a series of the log of road traffic fatalities in Finalnd and analyse its slope to tell if the trend of fatalities was increasing or decrasing during different periods of time.

using StateSpaceModels, Plots, CSV, DataFrames
df = CSV.File(StateSpaceModels.VEHICLE_FATALITIES) |> DataFrame
log_ff = log.(df.ff)
plt = plot(df.date, log_ff, label = "Log of Finland road traffic fatalities")

We fit a LocalLinearTrend

model = LocalLinearTrend(log_ff)
fit!(model)

LocalLinearTrend

By extracting the smoothed slope we conclude that according to our model the trend of fatalities in Finland was increasing in the years 1970, 1982, 1984 through to 1988, and in 1998

smoother_output = kalman_smoother(model)
plot(df.date, get_smoothed_state(smoother_output)[:, 2], label = "slope")

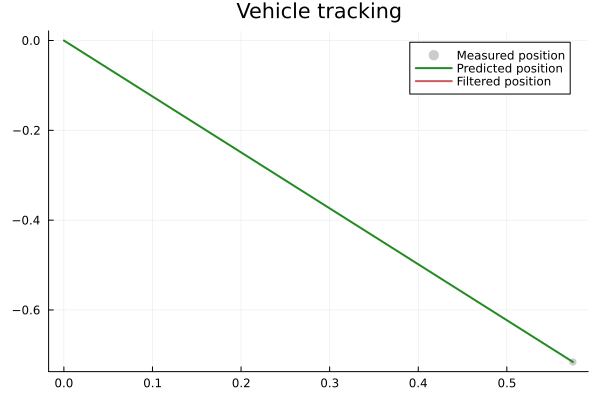

Vehicle tracking

This example illustrates how to perform vehicle tracking from noisy data.

using Random
Random.seed!(1)

# Define a random trajectory
n = 100
H = [1 0; 0 1.0]
Q = [1 0; 0 1.0]
rho = 0.1
model = VehicleTracking(rand(n, 2), rho, H, Q)
initial_state = [0.0, 0, 0, 0]
sim = StateSpaceModels.simulate(model.system, initial_state, n)

# Use a Kalman filter to get the predictive and filtered states
model = VehicleTracking(sim, 0.1, H, Q)
kalman_filter(model)
pos_pred = get_predictive_state(model)
pos_filtered = get_filtered_state(model)

# Plot a gif illustrating the result
using Plots
anim = @animate for i in 1:n
    plot(sim[1:i, 1], sim[1:i, 2], label="Measured position", line=:scatter, lw=2, markeralpha=0.2, color=:black, title="Vehicle tracking")
    plot!(pos_pred[1:i+1, 1], pos_pred[1:i+1, 3], label = "Predicted position", lw=2, color=:forestgreen)
    plot!(pos_filtered[1:i, 1], pos_filtered[1:i, 3], label = "Filtered position", lw=2, color=:indianred)
end
gif(anim, "anim_fps15.gif", fps = 15)

Cross validation of the forecasts of a model

Often times users would like to compare the forecasting skill of different models. The function cross_validation makes it easy to make a rolling window scheme of estimations and forecasts that allow users to track each model forecasting skill per lead time. A simple plot recipe is implemented to help users to interpret the results easily.

using CSV, DataFrames
air_passengers = CSV.File(StateSpaceModels.AIR_PASSENGERS) |> DataFrame
log_air_passengers = log.(air_passengers.passengers)
model = BasicStructural(log_air_passengers, 12)
b = cross_validation(model, 24, 50)
plot(b, "Basic structural model")
